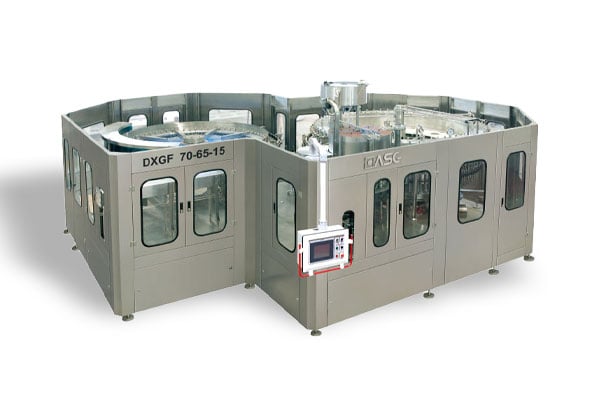

ASG's DXGF: Efficient and Precise Carbonated Soft Drinks Filling

DXGF

Introducing ASG's DXGF Model - the epitome of precision and efficiency in carbonated beverage bottling. Elegantly combining automated, aesthetic, and user-friendly features, this machine is designed to reduce labor while boosting production efficiency. With the DXGF, adaptability meets anticipation, offering smooth transitions between various bottle sizes and an adjustable equipment height. Crafted with food-grade stainless steel and innovating with 3-in-1 technology, it ensures a hygienic and dynamic production flow. Experience unmatched filling accuracy, secured by a CIP circuit, and a magnetic torque device, guaranteeing the quality of your beverages from filling to sealing. All these, controlled via a clear, intuitive touch-screen, ensuring your operational excellence is effortless and just a touch away.

Technical Details

500ml (PET Bottle)

	DXGF
Output capacity (bottles per hour)	Up to 32,000 BPH
Number of filling valves	Up to 80
Suitable bottle diameter	Φ=50-100
Efficiency	Up to 98%
Products	Sparkling water, carbonated soft drinks, etc
Filling methods	Mechanical valve filling, flow meter filling, weighing filling
CIP	Auto CIP with dummy cups
HEPA Filter	Reduced filler environment under positive pressure
Combi System	Integrate with the MX Blower to form the DXGF Combi System

Features

Multifaceted and Automated

Combines a compact structure and a proficient operation system, enhancing both its automation and user-friendly operation.

Smooth Bottle Transition

Incorporates air conveyor and direct connection technology, omitting the need for an inlet bottle screw and ensuring fluid transitions across various bottle sizes.

Sterile and Robust Construction

All parts interacting with the product are constructed from premium stainless steel 316, guaranteeing both durability and effortless cleaning with no design blind corners.
